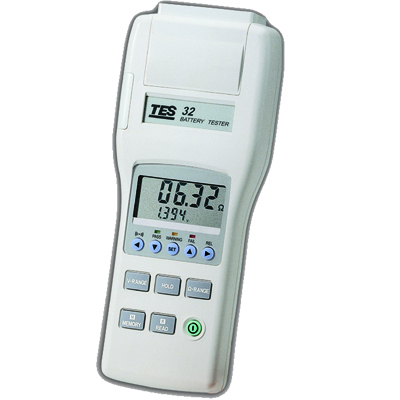

TES-32A
Battery Capacity Tester (RS-232)
Product Features
-
Test Condition Without Shutting Down Battery.
-
Simultaneously Measure Battery Resistance, Voltage.
-
Comparator Function.
-
Rates Conditions as Pass, Warning, or Fail.
-
Memory and Read Function
-
Compact and Lightweight.
-
RS232 PC Interface
|
Battery Types Tested |
Compact storage batteries, Alkali and lead-acid batteries.. |
|
Battery Capacity |
0 to 500AH |
|
Resistance |
Ranges : 40mΩ, 400mΩ, 4Ω, 40Ω
Resolution : 10μΩ, 100μΩ, 1mΩ, 10mΩ
Accuracy : ±(1%reading + 8digits) on all ranges. |
|
Measurement |
Current : 25mA, 2.5mA, 250μA,25μA
Frequency : 1KHz
Accuracy : ±10% |
|
Voltage |
Measurement : 4V, 40V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits) |
|
Open Circuit Voltage |
3.5Vpp max |
|
Data Memory |
500 data sets |
|
Continuous Data Memory |
9600 data sets (only use PC download) |
|
Comparator |
Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values
|
|
Operating Environment |
0℃ to 50℃ (32℉ to 122℉), 80%RH or less, non-condensing. |
|
Maximum Input Voltage |
50VDC |
|
Power Supply or AC Adapter |
Six size AAA 1.5V |
|
Battery Life |
7 hours |
|
Weight |
Approx. 500g including batteries |
|
Dimensions |
Approx. 250(L)×100(W)×45(H)mm |
|
Accessories |
Instruction manual, Batteries, Test probe, Software,
RS232 cable. |
|
Optional Accessories |
AC adaptor (Isolated output 9VDC) |
|
|
