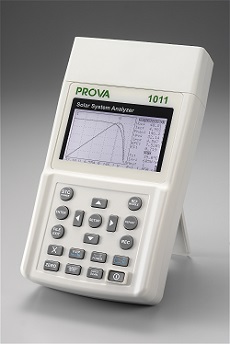

Solar System Analyzer
MODEL: Prova 1011 |
|
|
|
-
I-V Curve test for Solar System
-
Includes moisture-proof Remote Solar Detector
-
Prova 1011 and Solar Detector connected by Bluetooth
-
Intelligent Test Logic enables unattended testing
-
Autoscan for maximum solar system power, Pmax
-
Measurement capability is 12000W, 1000V at 12A
-
Irradiance and temperature can be continuously recorded
-
I-V curves can be recorded using Data Logging function
-
Each data point is displayed by I-V curve with cursor
-
USB Cable and Software for PC or Laptop
-
Optional AC Power Clamp and DC Current Probe
|
Electrical Specifications:
(23°C ± 5°C, Irradiance ≥ 800 W/m2, 4-wire measurement, Max. power 12000W)
DC Voltage Measurement:
|
Range |
Resolution |
Accuracy |
|
1 ∼ 1000V |
0.01V / 0.1V / 1V |
±1% ±(1% of Vopen ±0.1V) |
Vopen: Open circuit voltage of solar cell or module
DC Current Measurement:
|
Range |
Resolution |
Accuracy |
|
0.1 ∼ 12A |
1mA / 10mA |
± 1% ± (1% of Ishort ±9 mA) |
Ishort: Short circuit current of solar cell or module
DC Current Simulation:
|
Range |
Resolution |
Accuracy |
|
0.1 ∼ 12A |
1mA / 10mA |
± 1% ± 9 mA |
Irradiance Measurement :
|
Range |
Resolution |
Accuracy |
|
0 ∼ 2000 W/m2 |
1 W/m2 |
± 3% ± 20 dgts |
Temperature Measurement :
|
Range |
Resolution |
Accuracy |
|
-22 °C ∼ 85 °C |
0.1 °C |
± 1% ± 1 °C |
General Specifications:
|
Standards |
CE CAT II 1000V / CAT III 300V |
|
Battery |
Rechargeable Lithium Battery (3400mAh) |
|
Memory Size |
512K Bytes. (3980 Mod files or
320 REC files or
3980 PWR files or
3980 IRR files) |
|
AC Power Adaptor |
AC 100 ∼ 240V input
DC 15V / 1∼3A output |
|
Dimensions |
(257 x 155 x 57)mm (10.1" x 6.1" x 2.2") |
|
Weight |
1525g (batteries included), 3.4 lbs |
|
Operating environment |
5°C ∼ 50°C, 85% RH |
|
Temperature Coefficient |
0.1% of full scale / °C (<18°C or >28°C) |
|
Storage environment |
-20°C ∼ 60°C, 75% RH |
|
Accessories included |
Remote Solar Detector with Thermometer, USB Power Cord, User's Manual, AC Power Adaptor, Optical USB Cable, Software CD, Software Manual, Rechargeable Lithium Battery (3400mAh), Carrying Bag, Thermal Conductive Gel, Testing Clips (1 black and 1 red), 4-wire to 2-wire Connecting Cable, 4-wire Testing Cable |
|
Optional Accessories |
Prova Solar 15 DC Current Probe
Prova Solar 21 AC Power Clamp
Please see Brochure (PDF link) below for more details. |
|
